Description

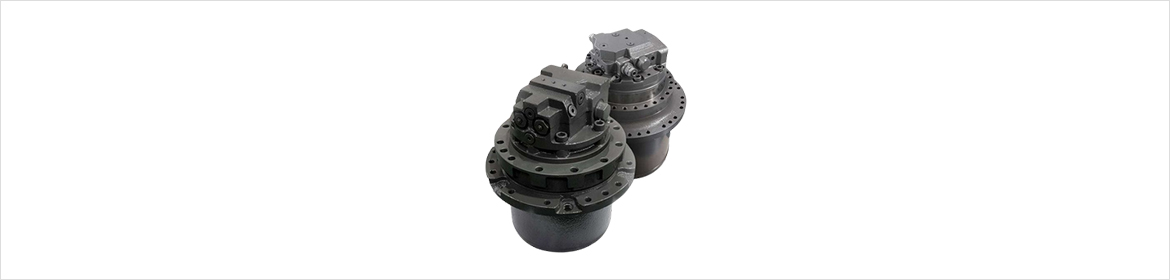

FDNB &FTD series are high-efficiency, high-reliability, low-noise swash plate axial piston motor for construction machinery.
-
Features Benefits High-efficiency motor Securing high efficiency through optimized design of rotary parts Adoption of 2-speed switching function Automatic 1-speed switching function selectable according to load Improved reliability Prevention of external oil leakage by applying a plug of proven special specification Excellent operability Counterbalance valve applied for shock relief / Relief valve with 3-stage orifice improves
shock and increases stability when stoppedSpecificationSeries FDNB Series FTD Series 08 12 26 45 48 70 80 100 130** 180** 220** Device Torque[N·m] 8,340 12,560 25,830 44,520 47,580 70,000 79,570 100,100 130,000 180,000 220,000 Speed[min-1] 60 60 60 58.2 54.2 50.0 43.5 36.0 35.0 26.7 23.5 Displacement[cm3] 55.4 55.4 95.3 180.0 180.1 291.6 291.6 291.6 348.3 348.3 348.3 Motor Pressure[MPa] 34.3 34.3 35.8 35.8 Speed[min-1] 3,200 3,200 3,000 2,650 2,650 2,200 2,200 2,200 2,450 2,450 2,450 Brake torque[N·m] 137 137 265 621 621 1,177 1,177 1,177 2,000 2,000 2,000 Application [ton] 6~8 8~10 12~18 18~25 22~26 28~35 36~42 45~55 55~65 70~80 80~100
